Flame Resistant Aluminum Foil Fiberglass Cloth for Industrial Protection and Insulation Applications
Description
This product is part of Wingsec’s aluminum foil composite series. It consists of a 3732 woven fiberglass fabric (430 g/m²) coated with a reflective aluminum foil layer. The total mass per unit area is 480 g/m², and the overall thickness is 0.43 mm.
The 3732 fiberglass base fabric performs reliably under continuous temperatures ranging from -100°F to 1022°F (-73°C to 550°C), offering excellent thermal stability and mechanical strength. The aluminum foil adhesive should be used below 1220°F (660°C). However, since aluminum foil requires time to absorb sufficient heat before melting, the material can endure short-term exposure to even higher temperatures.

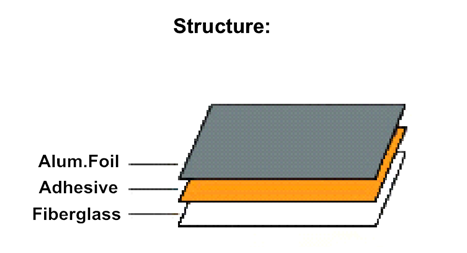

| Product Construction |
| Materlal Composition | Material Description | Value Standard |
| Foil | Aluminum | 9 Micron |
| Adhesive | Pressure Sensitive Oily Adhesive and Water Base Glue | Adjust according to different thickness of base fabric |
| Fiberglass Cloth | Each difference Thickness Cloth | 75-2000g |
Data Sheets for 0.4mm Alumimium Fiberglass Cloth
| Type | Metric data | British data |
| Thread | Warp | 17.3/cm | 43.94/inch |
| count | Weft | 12.5/cm | 31.75/inch |
| Weight | 220g/m2 | 5.8OZ/YD2 |
| Thickness | 0.2mm | 0.08 inch |
| Coating | Aluminium foil/ Metalized film / Aluminium foil + PET |
| Coating thickness | 7micron, 18micron, 25micron | 0.28mil, 0.70mil, 0.98mil |
| Tensile | warp | 2025N/5cm | 225 lbs/inch |
| weft | 1620N/5cm | 180 lbs/inch |
Width | 100cm | 40inch |
| 120cm | 48inch |
| 150cm | 60inch |
| Weave | plain |
| Working temperature | 550℃ for fiberglass, 260℃ for mucilage |
What are the uses of aluminum foil fiberglass cloth?
Electrical insulation: It can be made into insulating cloth and tubing, suitable for applications requiring high electrical insulation performance.
Non-metallic compensators: It is used as flexible pipe joints and non-metallic compensators. It is primarily used in power plants, the petroleum, chemical, cement, and steel industries.
Anti-corrosion: It is an ideal anti-corrosion material for internal and external corrosion protection of pipelines and storage tanks.
Fire protection: It can be used as fireproof cloth in industries such as automotive and shipbuilding.
Other uses: It can also be used as a building sealant, high-temperature anti-corrosion tape, packaging material, and decorative material.
Product Features:
Clean, lightweight, flexible, and with excellent cushioning properties;
Reflective, insulating, and waterproof (fireproof);
Low thermal conductivity and excellent thermal insulation;
Easy installation, high efficiency, maintenance-free, and environmentally friendly.
Much More Related Products
| tem no. | Weave | Density per cm | Weight g/m2 | Thickness | Aluminum Foil Thickness | Tensile Strength N/In |
| Warp & Weft | Warp & Weft |
| AL75 | Plain | 12*8 | 75 | 0.1mm | 7Micron | 380*370 |
| AL7628 | Plain | 18*12 | 200 | 0.2mm | 7Micron | 2025*1620 |
| AL3732 | 3x1 Twill | 18*12 | 430 | 0.43mm | 7/18Micron | 6000*4500 |
| ALFW600 | Double Plain | 15*15 | 600 | 0.55mm | 7/18Micron | 6000*5000 |
| AL2025 | Plain | 8*5.7 | 610 | 0.75mm | 7/18Micron | 2025*1216 |
| AL-M30 | Plain | 6*3.8 | 1020 | 1.2mm | 7/18Micron | 3000*2200 |
| AL-3784 | Satin | 18*13 | 880 | 0.9mm | 7/18Micron | 8000*6000 |
| Other thickness and weight can also be customized according to your Requirement |
| 75g<Weight<2000g |
| Coating: Aluminum Foil Laminated; Aluminum Foil PET Film; Aluminum Metalized PET Film |
FAQs
Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.
Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.
Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.
Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.
Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.
Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
